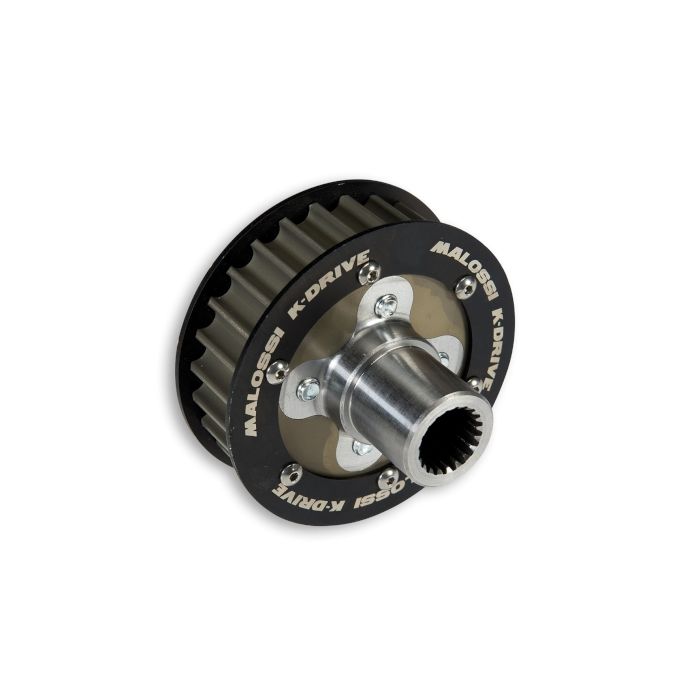

K-DRIVE PINION Z28
317,92 EUR
Na zalihama Isporuka: od 3 do 7 dana
SKU
6118814
Datumi isporuke su informativnog karaktera. Moguća su kašnjenja u isporuci na koja mi nemamo utjecaja.
K-DRIVE MALOSSI
Malossi K-DRIVE is a lighter gear ratio than the original
for the Yamaha Tmax 530 - 560.
Characterised by a sought-after appearance, the
K-DRIVE crowns and pinions have different ratios to
satisfy all the rider’s requirements.
Pinion
6118805B Z 25
6118804B Z 27
6118814 Z 28
6118815 Z 29
Crown
6118806B Z 60
TECHNICAL SPECIFICATIONS
The pinions are made from aluminium with hard oxidisation 25 microns deep. With this treatment Malossi has maintained a particularly light shape of the piece whilst guaranteeing high wear resistance. The central hub is made from a special steel alloy, not heat treated in order to avoid making it too hard and thus causing friction problems with the motor transmission shaft. The following tooth options are proposed z.: 24. 27. 28. 29.
| COUPLING TABLE K-DRIVE CROWN - PINION | |||
| Pinions | Crowns | Ratio | % Ratio |
| 25 | 60 | 2,400 | - 5.8% |
| 25 | 59 | 2,360 | - 4.0% |
| 25 | 58 | 2,320 | - 2.2% |
| 26 | 60 | 2,308 | - 1.7% |
| 25 | 57 | 2,280 | - 0.5% |
| 26 | 59 | 2,269 | Original |
| 25 | 56 | 2,240 | + 1.3% |
| 26 | 58 | 2,231 | + 1.7% |
| 27 | 60 | 2,222 | + 2.1% |
| 27 | 59 | 2,185 | + 3.7% |
| 27 | 58 | 2,148 | + 5.3% |
| 28 | 60 | 2,143 | + 5.6% |
| 28 | 59 | 2,107 | + 7.1% |
| 28 | 58 | 2,071 | + 8.7% |
| 29 | 60 | 2,069 | + 8.8% |
| 28 | 57 | 2,036 | + 10.3% |
| 29 | 59 | 2,034 | + 10.3% |
| 28 | 56 | 2,000 | + 11.9% |
| 29 | 58 | 2,000 | + 11.9% |
| 29 | 57 | 1,966 | + 13.4% |
| 29 | 56 | 1,931 | + 14.9% |
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
YAMAHA : YAMAHA T MAX 560 ie 4T LC euro 5 2020->2021 (J420E), YAMAHA T MAX 560 ie 4T LC euro 5 2022->, YAMAHA T MAX Tech MAX 560 ie 4T LC euro 5 2020->2021 (J420E), YAMAHA T MAX Tech MAX 560 ie 4T LC euro 5 2022->
